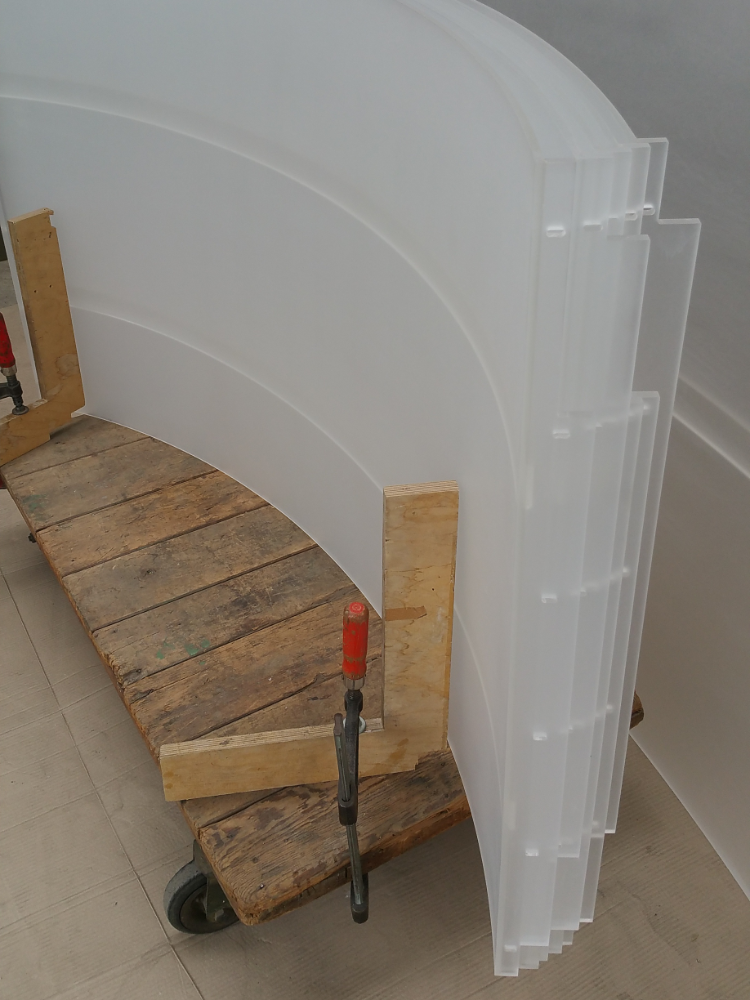

Projection Panels (Plexiglas)
Projection Panels (Plexiglas)
Setup of Main Projection

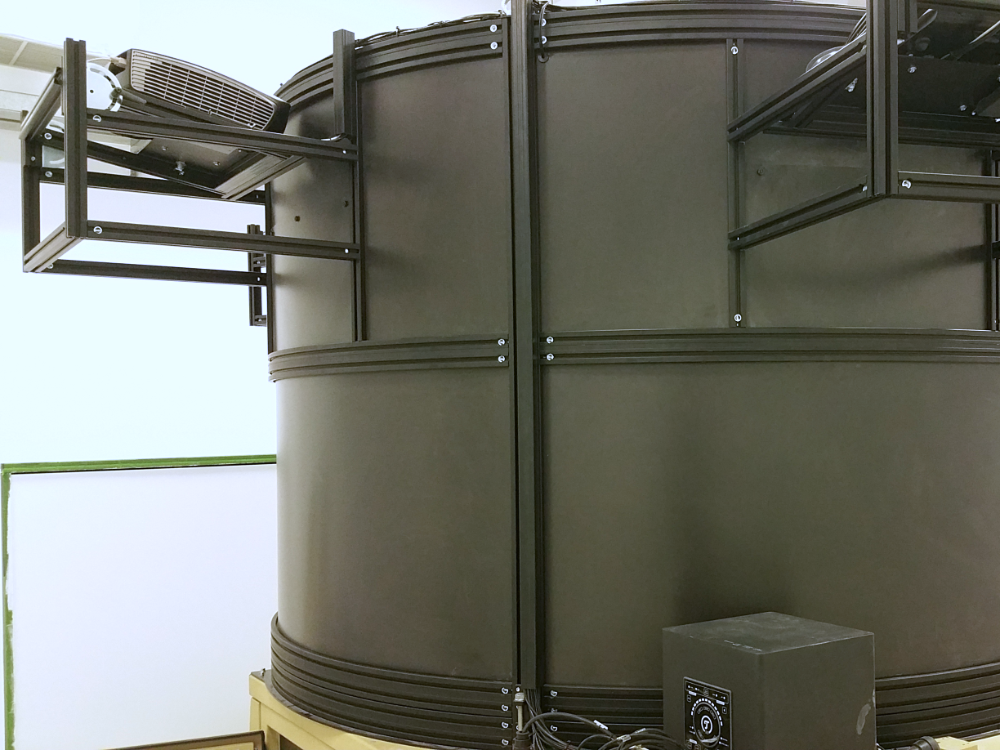

Mounted 360° Projection System
Mounted 360° Projection System (Detail)
Mounted 360° Projection System (Detail)
Mounted 360° Projection System (Detail)
Main Projection & 360° Projection System

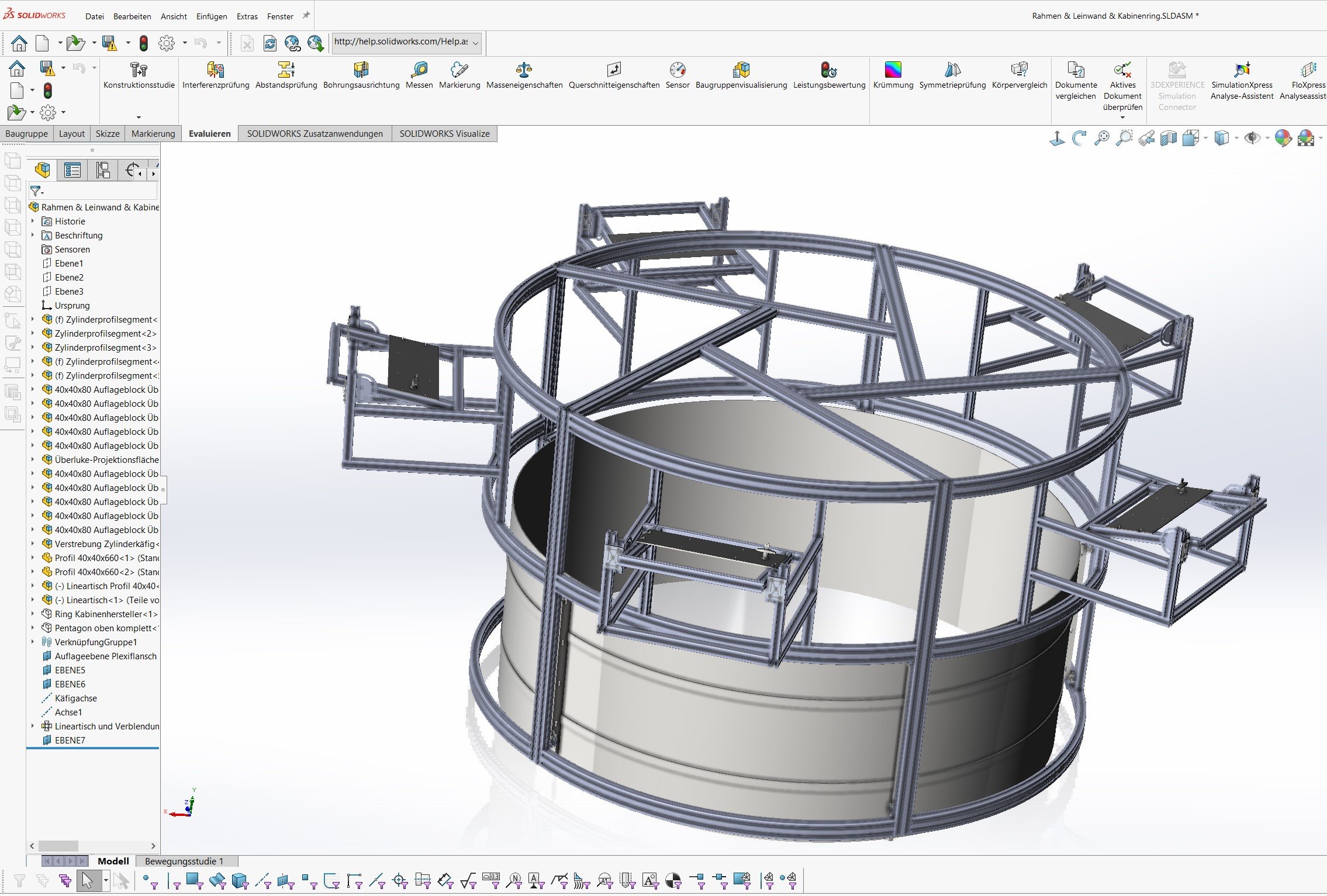

CAD Data
5-Channel 360° x 30° “Over-the-Hatch” Projection System for armoured Vehicle RPT
Description:
5-Channel 360° x 30° Over-the-Hatch Projection System for armoured Vehicle Reconnaissance Procedure Trainer (RPT) and Projection Surface for the Driver’s Simulation
Customer:
<CONFIDENTIAL>
Location:
<CONFIDENTIAL>
Tasks performed:
Concept, Design, Procurement of the Hardware, Manufacturing of the mechanical Parts, Installation
Project Specialties:
FOV (Field of View): 220° x 30° (+30° above the Horizon)
Resolution: 5.4 arcmin/OLP
Brightness: 20 ftL
5 x LED Projectors of Type OPTOMA
segmented, cylindrical Projection Screen of bended Plexiglas (1.2m Diameter)
Main Construction of bended Aluminum Profiles
Complete Projection System removable through Connection Ring
Main Projection Screen also made of bended Plexiglas-Segments and Aluminum Profiles
